OEM Friendly Access Control Devices

Our next generation access control platform is integrator-ready, installer-friendly, and prepared to meet all physical security requirements. Our SDK comes in multiple coding languages and includes example code which expedites integration and time-to-market.

The majority of our products were designed as a Mercury Security “bridge”, meaning they have the same footprint and mounting as Mercury Security panels. Our panels can be installed as drop-in replacements; using the same enclosures and wiring harnesses. Our products also boast industry-leading reliability ratings.

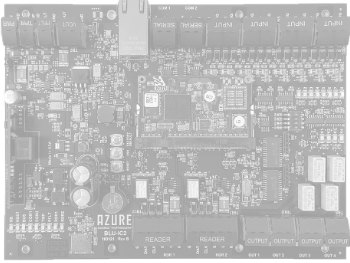

BLU-IC4

• 4-Door Controller with onboard interfaces to completely secure 4 Access Points
• * 4 Reader Ports for Wiegand readers
• * 16 Supervised Inputs
• * 8 Relay Outputs
• * 2 Downstream RS485 Serial Ports for OSDP Readers as well as IO and Reader Interface panels
• * 2 Dedicated Ethernet Ports
• * USB 2.0
• * Onboard power monitoring with memory and RTC backup
• Read more

BLU-IC2

• 2-Door Controller with onboard interfaces to completely secure 2 Access Points
• * 2 Reader Ports that can support Wiegand and RS485 (OSDP) readers
• * 8 Supervised Inputs
• * 4 Relay Outputs
• * 2 Downstream RS485 Serial Ports for IO and Reader Interface panels
• * 1 Dedicated Ethernet Port
• * USB 2.0 (Micro-AB connector)
• * Micro SD memory card
• * Onboard power monitoring with memory and RTC backup
• * PoE+ (Power over Ethernet)
• Read more

BLU-IO168

• Downstream Input/Output panel
• * Elevator control
• * 16 Supervised Inputs
• * 8 Relay Outputs
• * 1 RS485 Serial Port
• * 1 Dedicated Ethernet Port
• * PoE+ (Power over Ethernet)
• Read more

BLU-RI2M

• 2-Reader Downstream Interface to completely secure 2 Access Points
• * 2 Reader Ports that can support Wiegand and RS485 (OSDP) readers
• * 6 Supervised Inputs
• * 4 Relay Outputs
• * 1 Upstream RS485 Port
• * 1 Dedicated Ethernet Port
• * PoE+ (Power over Ethernet)
• Read more

BLU-RI4

• 4-Reader Downstream Interface to completely secure 4 Access Points
• * 4 Reader Ports that can support Wiegand and RS485 (OSDP) readers
• * 12 Supervised Inputs
• * 8 Relay Outputs
• * 1 Upstream RS485 Port
• * 1 Dedicated Ethernet Port
• Read more

BLU-IO21

• Downstream Input/Output panel
• * 2 Supervised Inputs
• * 1 Relay Output
• * 1 Upstream RS485 Port
• * Custom enclosure with tamper sensor
• * Install on same power and OSDP serial bus as OSDP readers
• Read more

BLU-XO8

• + 8 Relay Expansion Module
• * Mounts to BLU-IO168 & BLU-O8 to add 8 relays
• * Powered from IO baseboard
• * LED indicators for relay status
• Read more
